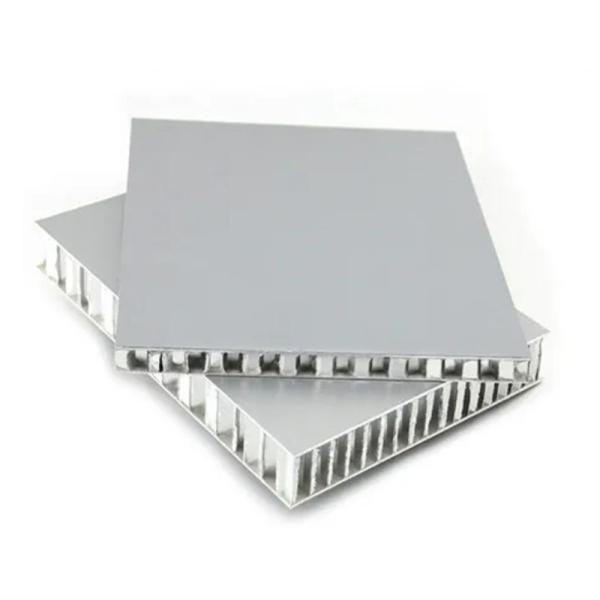

Fireproof Aluminum Honeycomb Panel
Product Overview:
| Material | Aluminum | Aluminum Alloy | 1100 / 3003 / 5005 |
| Total Thickness | 8mm, 10mm , 12mm, 15mm, 18mm, 20mm 25mm and so on | Surface Finish | PVDF Coated / Power Coated |
| Coating Brand | PPG / Akzo Nobel | Warranty | 10-20 years |
| Size | width≤1500mm, length≤5800mm | Color | Customized |
| Packing | Wooden Box | MOQ | 500㎡ |
| Class Fire Prevention | A2 | | |
Product Information:
WHOLETOPS brand Fireproof Aluminum Honeycomb Panel is the use of the current international advanced aviation technology combined with advanced automatic production equipment, making the aluminum and aluminum honeycomb core bonded to a high-tech environment-friendly decorative materials. We adopt continuous high-temperature compounding technology from German, use high-intensity heat plastic adhesion system, It comply with green product direction, with super weather ability fluorocarbon resin with colored pre-roll coating techniques. High strength, good rigidity, light weight, ultra-smooth, uniform color, sound and heat insulation, thermal insulation, moisture, fire, wind pressure, seismic, weather resistance, long life and easy installation, wide option for color and so on. What’s more, its’ cost performance is far beyond the traditional aluminum panel, which is truly ‘Green Environmental Protection, energy conservation’ and really the first choice of material for modern decoration.
Specification:
1. Total Thickness: 8mm, 10mm , 12mm, 15mm, 18mm, 20mm, 25mm and so on.
2. Top Panel: aluminum alloy sheet coated with fluro-carbon resin((PVDF) coating with 0.8 – 1.0 mm thickness.
3. Core: aluminum honeycomb core
4. Bottom Panel: aluminum sheet with PVDF coated / Power coated with 0.8—1.0mm thickness
5. Surface finish: PVDF coated / Power coated
6. Aluminum Alloy: 1100, 3003, 5005
7. size: width ≤ 1500mm, length ≤ 5800mm
Scopes of Application:
It can be used in rail transportation, military, petrochemical, new energy automotive, civil domain etc.
Product advantages:
1. Light weight,good rigidity and strength
2. Non-flammable,good fire restistance
3. Exellent UV resistance, excellent weather resistance of surface, superior resistance to acid and alkali. Shelf life is 15 years without discoloration under normal outdoor environment.
4. Good formability, can be formed to plane, arc and complicated shape, such as sphere and tower.
5. Hard-to-stain,easy to clean and maintain
6. Wide range of color optional, excellent decoration effect
